自动定量包装机厂家

可包装：

石粉、碳酸钙装饰粉、石英粉、立德粉、钛白粉、墙固粉、地固粉、珍珠岩粉、蛭石粉、硅酸铝粉、玻璃棉粉、岩棉粉、膨胀蛭石粉、陶粒粉、保温砂浆粉、氧化铝粉、氧化镁粉、碳化硅粉、耐火粘土粉、氧化锆粉、堇青石粉、莫来石粉、刚玉粉、耐火水泥粉、矿粉、粉煤灰、石英粉、云母粉、脱硫石膏、石灰粉、长石粉、萤石粉、重晶石粉、方解石粉、石英砂粉、普通水泥、特种水泥、干粉砂浆、腻子粉、石膏粉、砌筑砂浆、抹灰砂浆、瓷砖胶粉、防水砂浆粉、自流平砂浆粉等。

设备简介：

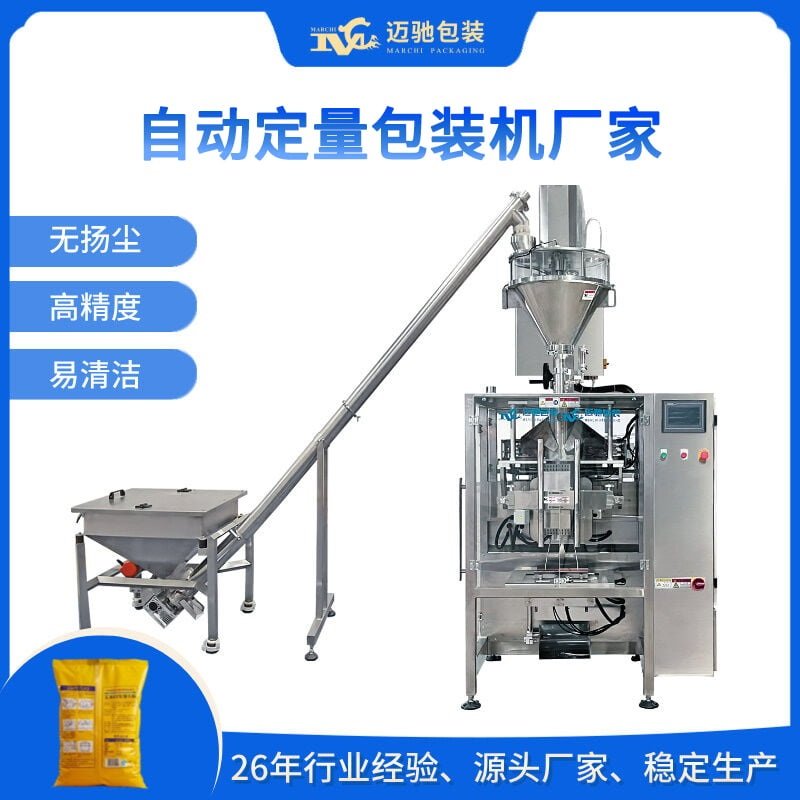

该机组由一台立式螺旋计量机和一台7300B立式充填包装机组成，特别适宜较大粉尘的超细粉状物料的计量包装。集计量、制袋、包装、封口、打码、计数于一体，配有先进料位控制系统，也可以增加除静电装置和吸尘装置，有效地解决了粉尘全自动包装的难题。

设备优点：密闭性好无粉尘、易清洁、更换包装规格方便、性价比高、故障率低且维护方便、占地面积小、包材成本低。

设备参数：

设备型号：MC7300B

袋长范围L×W(mm)：(50～460)×(120～350)

可包装袋型：枕式袋、插脚袋、冲孔袋、手提袋、盒式袋等

计量范围(g)：500～5000

计量精度：±0.2%～0.5%

包装速度(包/分)：10～50

Packable Materials:

Limestone Powder, Calcium Carbonate Decorative Powder, Quartz Powder, Lithopone Powder, Titanium Dioxide Powder, Wall Primer Powder, Floor Primer Powder, Perlite Powder, Vermiculite Powder, Aluminosilicate Powder, Glass Wool Powder, Rock Wool Powder, Expanded Vermiculite Powder, Expanded Clay Granule Powder, Thermal Insulation Mortar Powder, Alumina Powder, Magnesium Oxide Powder, Silicon Carbide Powder, Refractory Clay Powder, Zirconia Powder, Cordierite Powder, Mullite Powder, Corundum Powder, Refractory Cement Powder, Mineral Powder, Fly Ash, Quartz Powder, Mica Powder, Desulfurization Gypsum, Lime Powder, Feldspar Powder, Fluorite Powder, Barium Sulfate Powder, Calcite Powder, Silica Sand Powder, Ordinary Cement, Special Cement, Dry Mortar, Putty Powder, Gypsum Powder, Masonry Mortar, Plastering Mortar, Tile Adhesive Powder, Waterproof Mortar Powder, Self-leveling Mortar Powder, etc.

Equipment Introduction:

The system consists of a vertical screw volumetric filler and a 7300B vertical filling and packaging machine, specially suitable for the metering and packaging of fine powders with large dust content. It integrates metering, bag-making, packaging, sealing, coding, and counting into one. The system is equipped with an advanced material level control system, and optional electrostatic elimination and dust extraction devices can be added to effectively solve the challenge of fully automated dust packaging.

Advantages of the Equipment:

Excellent sealing, no dust leakage

Easy to clean

Convenient to change packaging specifications

High cost-performance ratio

Low failure rate and easy maintenance

Small footprint

Low packaging material cost

Equipment Parameters:

Model: MC7300B

Bag Length Range (L×W) (mm): (50–460) × (120–350)

Packable Bag Types: Pillow-type bag, Insert bag, Perforated bag, Handle bag, Box-type bag, etc.

Metering Range (g): 500–5000

Metering Accuracy: ±0.2%–0.5%

Packaging Speed (bags/min): 10–50
